Lifted 4 Seater Golf Cart (RAL-4)
Specification
|
Specs |
|
|
Weight |
750k |
|
Capacity |
4 People |
|
Overall Dimensions LxWxH |
LxWxH: 3100*1350*2060mm |
|
Power |
|
|
Motor |
5kW 3 Phase High Torque AC Motor |
|
Batteries |
5 pieces of 103Ah maintenance-free lead-acid batteries(optional lithium battery available) |
|
Controller |
Enpower(MC3528) |
|
Charger |
Onboard Charging System with Body Mounted Charge Indicator |
|
Motion transfer |
Infinitely Variable Speed System |
|
Max.Speed |
30 MPH |
|
Max.Travelling Range |
70 miles |
|
Steering & Suspension |
|
|
Steering |
Self-Compensating Reduction Rack and Pinion |
|

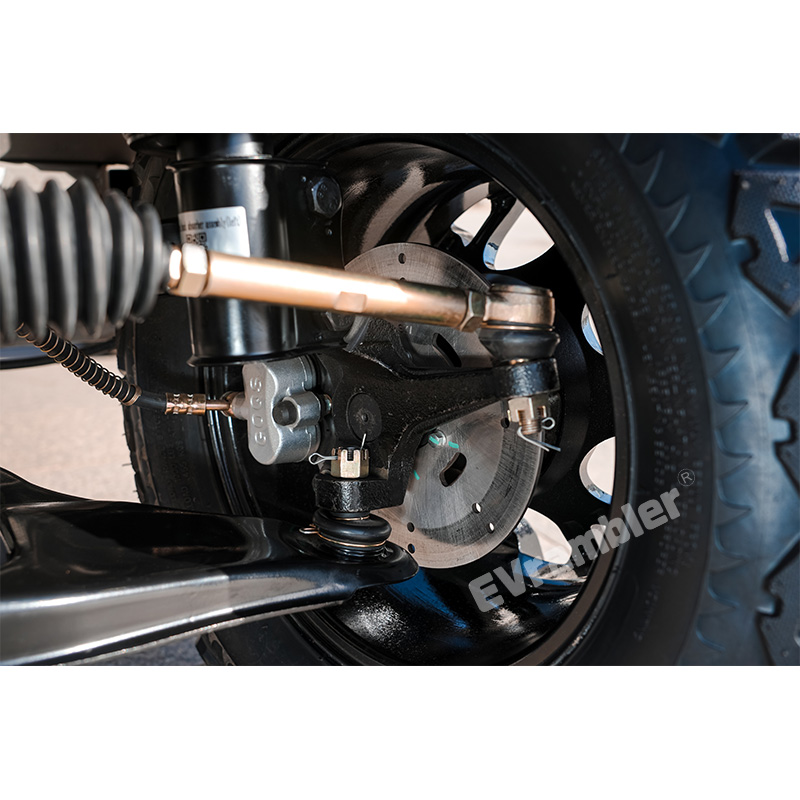

Front suspension |
Independent MacPherson Strut Suspension Double Swing Arms Independent Front Suspension + Coil Spring + Cylinder Type Hydraulic Shock Absorption |
|
Rear suspension |
Integral Rear Axle with Coil Spring and Cylinder Type Hydraulic Shock Absorption |
|
Braking System |
Four Wheel Disc Brakes with Power Assisted Braking |
|
Park Brake |
Foot Operated Parking |
|
Body |
|
|
Frame |
High strength carbon steel integral frame Electrophoresis + Automatic electrostatic powder coating |
|

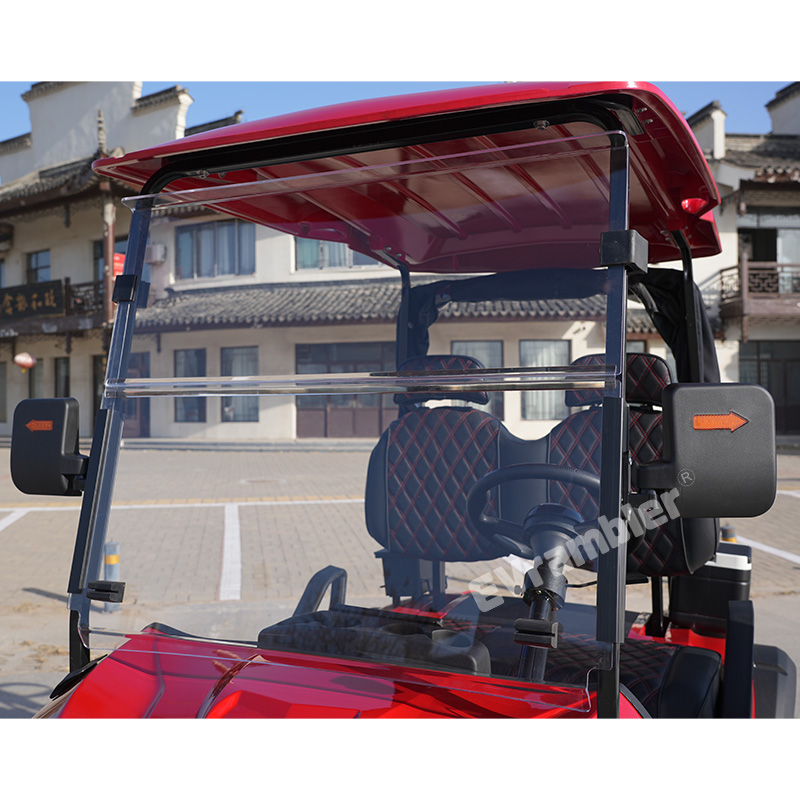

Front Windshield |
Foldable Acrylic |
|
Roof |
PP injection molding one-piece (Reinforced) |
|
Body |
Special Injection Material for Automobiles |
|
Mirrors |
Fully Adjustable and Foldable |
|
Seats |
Integral Foam Cushion + Solid High-Grade Leather |
|
Tires |
With 12”Aluminum Alloy Wheel Rim |
|
Safety Restraint |
Retractable Seat Belts |
|
Lighting and Signals |
Single Combination Switch for LED Projector Hi & Lo Beam Headlights, LED Signal Lights, Taillights, and Horn |
|
Dash Components |
Forward/Neutral/Reverse Switch, USB and 12V Plugs, Cubby Storage, Multiple Cup Holders, Key Switch, Instrumentation Cluster |
|

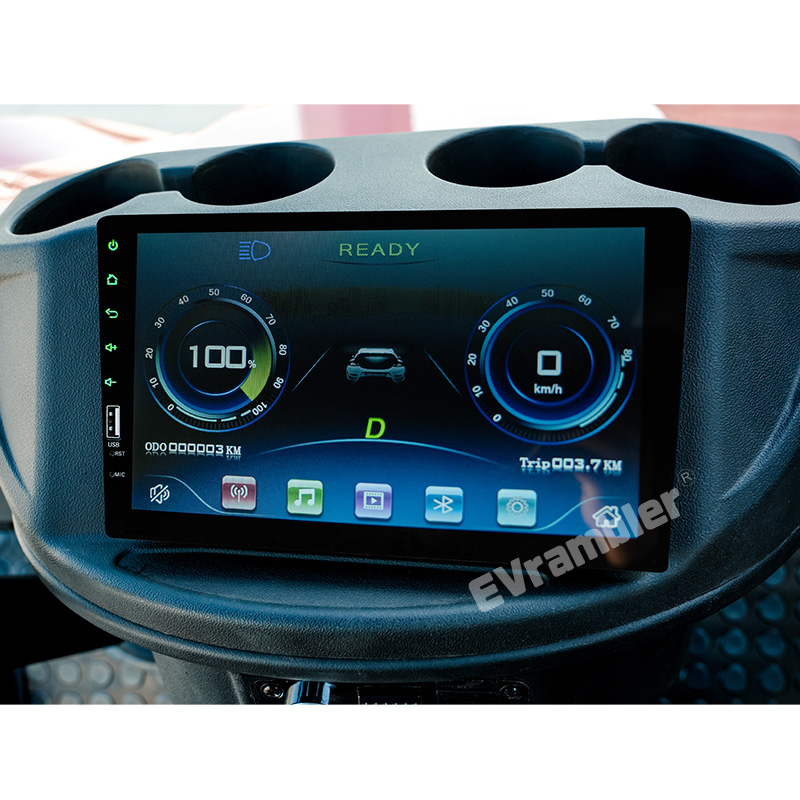

LCD Screen |
10-inch touchscreen with multimedia player, Carplay, backup camera, Bluetooth, speed display, battery level display, and radio functionality. |
STANDARD COLORS
AVAILABLEIN 6 PAINT COLORS AND CUSTOMIZABLE
-

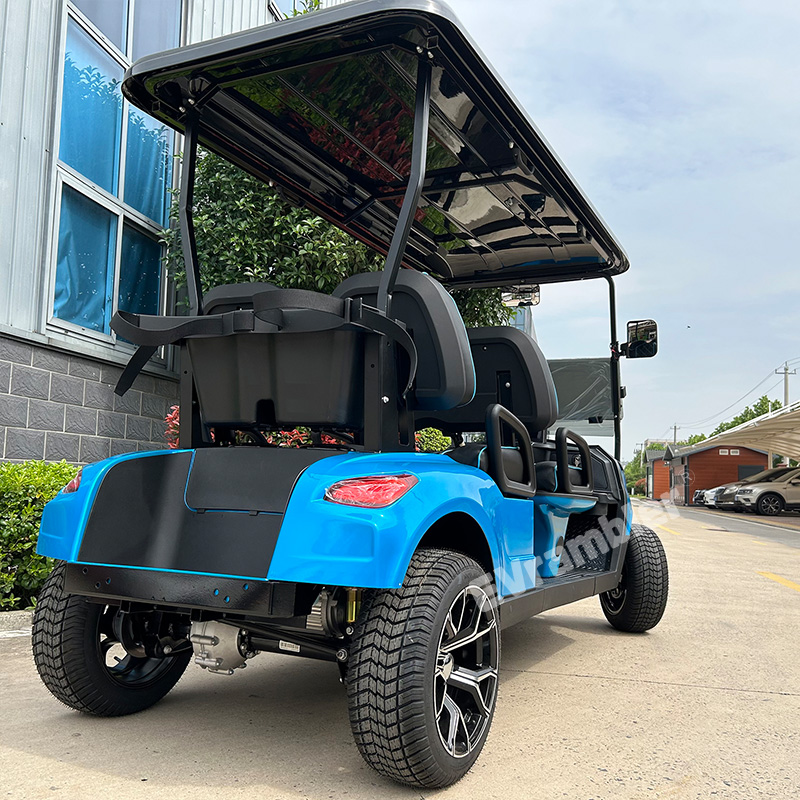

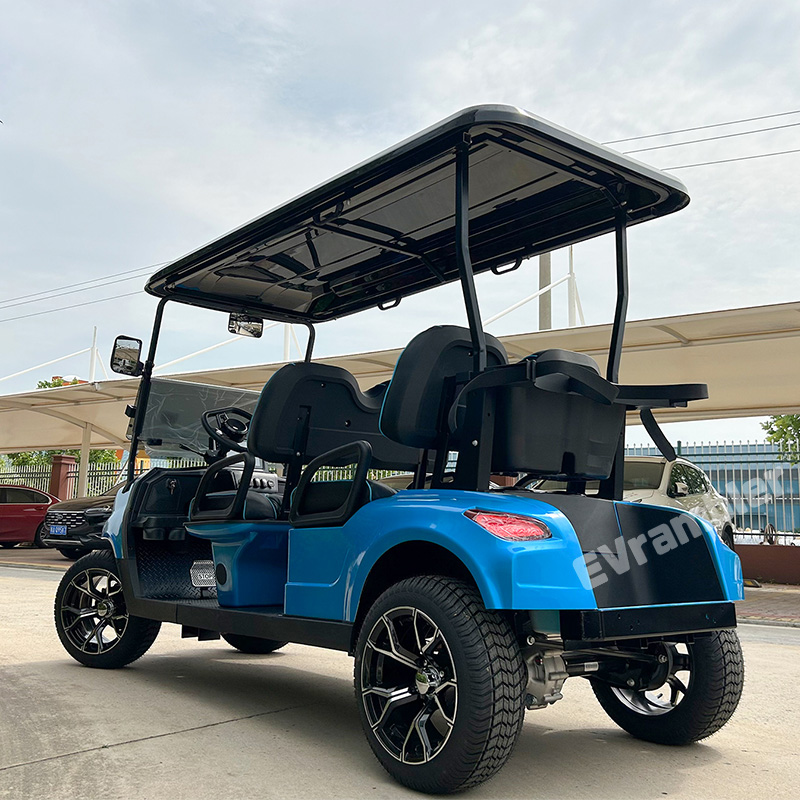

SKY BLUE
-

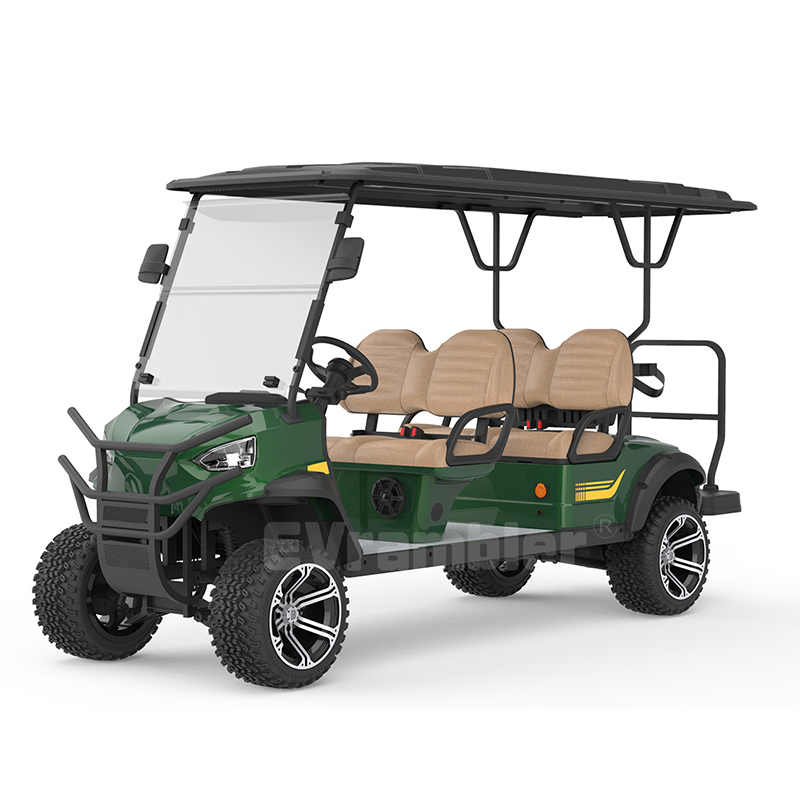

SLATE GREY
-
YELLOW ORANGE
-

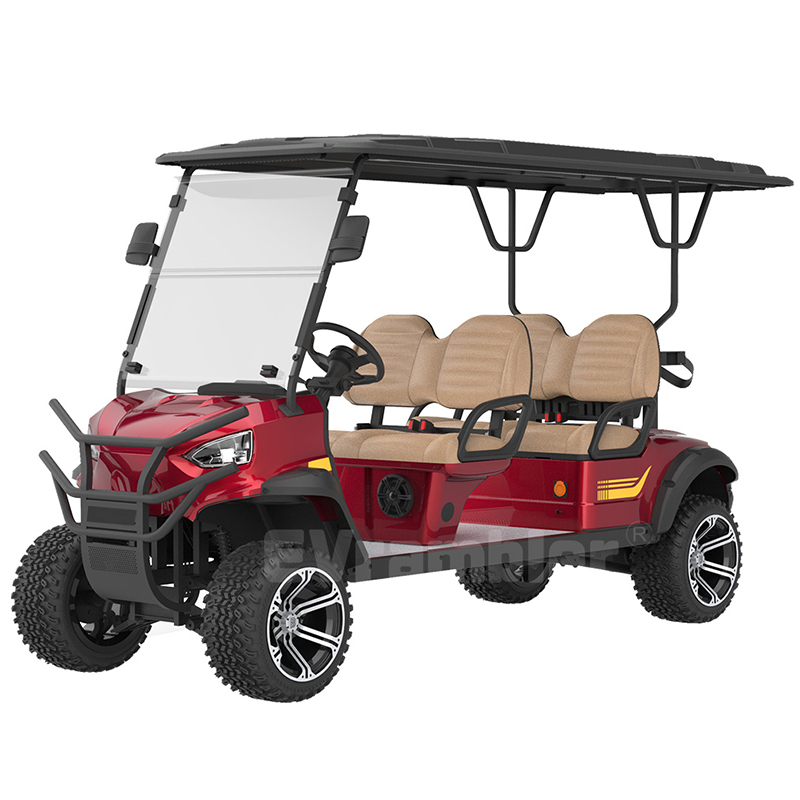

WINE RED
-

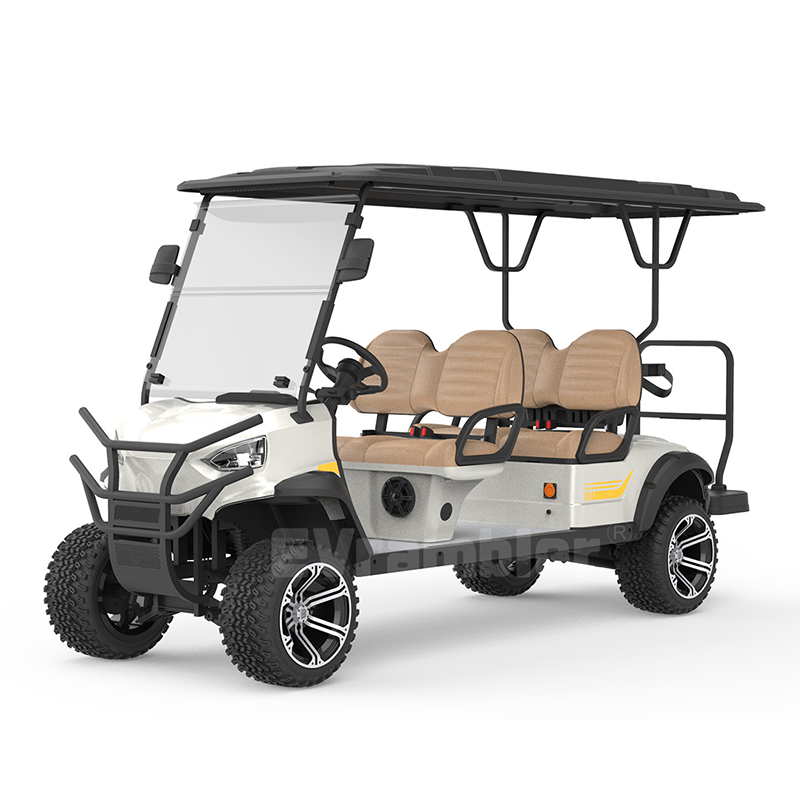

SIGNAL WHITE
-

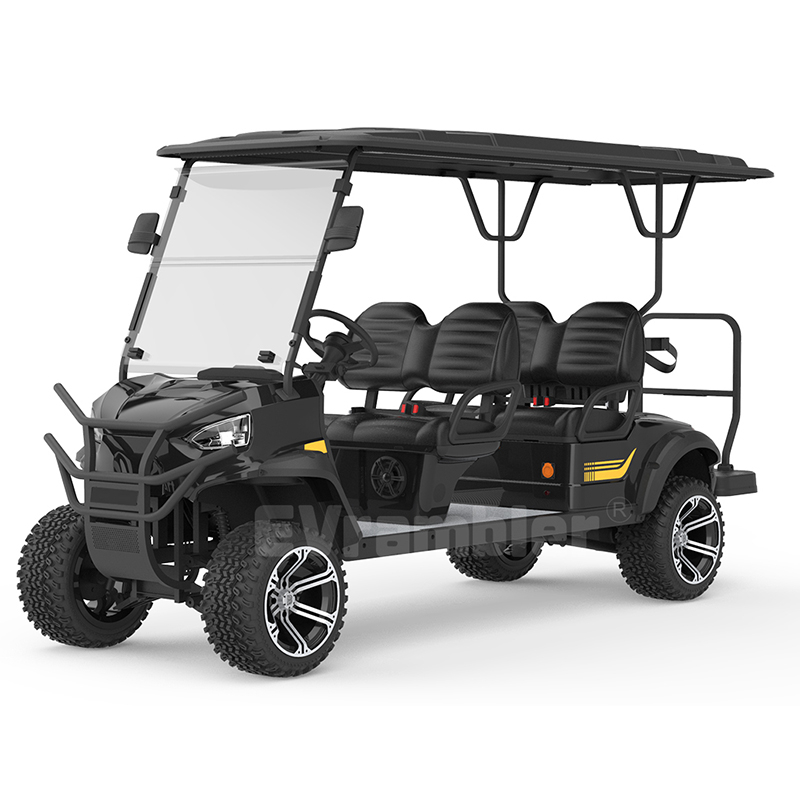

BLACK
